Description

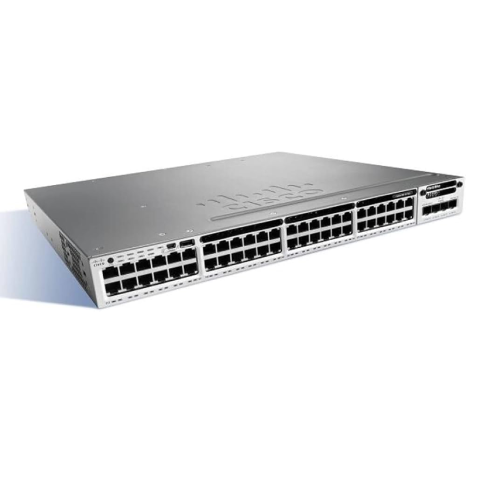

The Cisco WS-C3850-48F-E is a high-performance, stackable Layer 3 managed switch designed for enterprise networks. It offers advanced features such as Power over Ethernet Plus (PoE+), modular uplink flexibility, and comprehensive Layer 3 routing capabilities.

🔧 Key Specifications

• Ports: 48 x 10/100/1000 Mbps Ethernet ports with PoE+ (up to 30W per port)

• Power over Ethernet (PoE) Budget: 800W

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 million packets per second (Mpps)

• Stacking Bandwidth: 480 Gbps (supports up to 9 switches)

• Layer 3 Routing Protocols: OSPF, EIGRP, BGP, RIP, and IPv6

• Management: Web-based GUI, CLI, SNMP, and Cisco DNA

• Memory:

  • DRAM: 4 GB

  • Flash Memory: 2 GB

• Uplink Modules: Supports 1G, 10G, and 40G uplinks via modular network modules

• Form Factor: 1U rack-mountable

• Dimensions: 44.5 cm x 48.8 cm x 4.45 cm

• Weight: Approximately 8 kg

• Software: Cisco IOS IP Services feature set

• Warranty: Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

🔌 Power Options

• Primary Power Supply: 1100W AC

• Redundant Power Supply: Optional 1100W AC secondary power supply

• Power Redundancy Scheme: 1+1 (with optional power supply)

• Voltage Required: AC 120/230 V (50/60 Hz)

🔗 Stacking and Expansion

• Stacking Technology: Cisco StackWise-480

• Stacking Bandwidth: 480 Gbps

• Stacking Cables:

  • STACK-T1-50CM (50 cm)

  • STACK-T1-1M (1 meter)

  • STACK-T1-3M (3 meters)

• Network Modules:

  • C3850-NM-4-1G (4 x 1G uplinks)

  • C3850-NM-2-10G (2 x 10G or 4 x 1G uplinks)

  • C3850-NM-4-10G (4 x 10G uplinks)

📶 Wireless Capabilities

• Integrated Wireless Controller: Supports management of up to 100 access points and 2000 wireless clients

• Supported Access Points: Cisco Aironet 3600, 3500, 2600, 1600, 1260, 1140, and 1040 series

🛡️ Security Features

• MACsec Encryption: Provides secure data transmission

• Access Control Lists (ACLs): Enables traffic filtering and network segmentation

• TrustSec: Enhances network security through policy-based access control

📦 Dimensions & Weight

• Dimensions: 44.5 cm (W) x 48.8 cm (D) x 4.45 cm (H)

• Weight: Approximately 8.7 kg
