Description

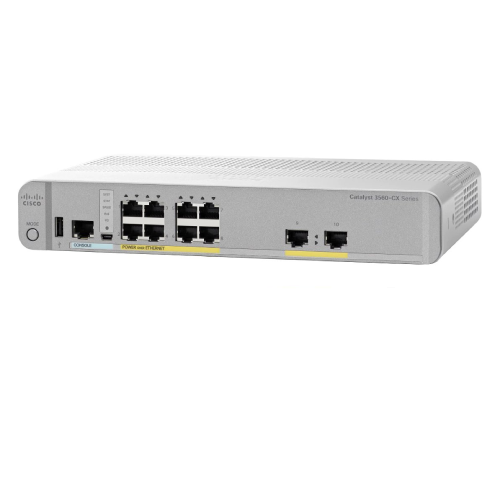

The Cisco WS-C3560CX-8PT-S is a compact, fanless Layer 3 managed switch from the Catalyst 3560-CX series, designed for edge deployments requiring high-performance connectivity in space-constrained environments.

🔧 Key Specifications

• Ports:

  • 8 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)

  • 2 x Gigabit Ethernet uplink ports

• Power over Ethernet (PoE+):

  • 8 PoE+ ports

  • Total PoE power budget: 180W

  • Maximum power consumption: 146W

• Performance:

  • Forwarding rate: 14.9 million packets per second (mpps)

  • Switching capacity: 32 Gbps

  • Jumbo frame support: Up to 9,198 bytes

• Memory:

  • 512 MB DRAM

  • 128 MB Flash memory

• Software:

  • Cisco IOS IP Base (Layer 2/3 with RTU License)

• Form Factor:

  • Compact, fanless design

  • Dimensions: 269.2 mm (W) x 177 mm (D) x 44.4 mm (H)

  • Weight: 1.58 kg

• Environmental:

  • Operating temperature: -5°C to +45°C

  • Storage temperature: -25°C to +70°C

  • Operating humidity: 5% to 95% non-condensing

  • Operating altitude: Up to 3,048 meters (10,000 ft)

🔌 Power Options

• Primary Power Supply: Internal power supply

• Redundant Power Supply: Optional, powered through uplinks

🔒 Security & Management Features

• Access Control Lists (ACLs) for traffic filtering

• IEEE 802.1X port-based authentication

• MAC-based authentication

• SSH/SSL support

• Quality of Service (QoS) support

• TACACS+ for centralized authentication

• Telnet and SNMPv3 support

📦 Package Contents

• WS-C3560CX-8PT-S Switch

• Accessory Kit

• Printed Documentation

This switch is ideal for small to medium-sized businesses, branch offices, or edge deployments requiring a compact, reliable, and fanless solution. Its Layer 3 capabilities, combined with PoE support, make it versatile for various networking needs.
