Description

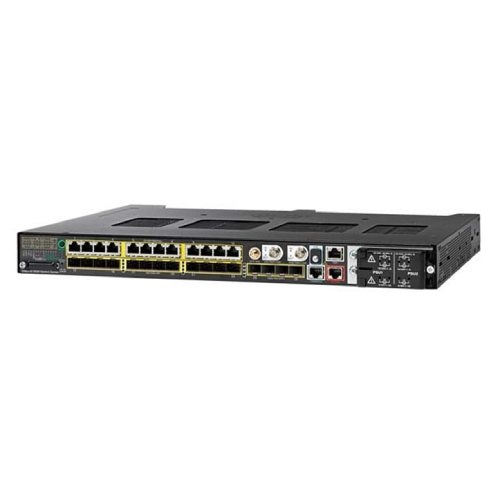

The Cisco IE-5000-16S12P is part of the Cisco Industrial Ethernet 5000 Series (IE 5000), a family of high-performance managed switches designed for use in industrial networks, including automation, transportation, energy, manufacturing, and smart city applications. These switches are engineered to provide reliable, scalable, and secure network connectivity in harsh environments, such as factory floors, remote locations, and outdoor settings.

The IE-5000-16S12P model is notable for its high port density, including both Gigabit Ethernet ports and PoE+ ports, as well as its advanced capabilities to support demanding applications that require real-time data transmission and network resilience.

1. General Features and Overview:

• Model: Cisco IE-5000-16S12P

• Series: Cisco Industrial Ethernet 5000 Series

• Type: Managed Layer 2 and Layer 3 industrial Ethernet switch.

• Designed for Industrial Environments: The switch is built for environments that require high availability, low latency, and industrial-grade durability.

• Target Applications: Ideal for use in industries like manufacturing, energy, smart grid, transportation, and critical infrastructure networks where high-density connectivity is essential.

2. Ports and Connectivity:

• 16 x Gigabit Ethernet Ports (10/100/1000 Mbps): These copper Ethernet ports are designed to connect industrial devices, such as PLCs, sensors, automation systems, and cameras. The 16 ports allow the switch to handle a high number of local network connections.

• 12 x Gigabit PoE+ Ports:

  • The PoE+ ports (IEEE 802.3at) provide Power over Ethernet (PoE), delivering both data and power to PoE-enabled devices (e.g., IP cameras, wireless access points, and IoT sensors) over a single Ethernet cable.

  • PoE+ can provide up to 25.5W per port, which supports more power-hungry devices compared to standard PoE.

  • The ability to deliver high power to industrial devices while simplifying wiring and installation makes this switch particularly useful in environments where traditional power outlets may be limited.

• Uplink Ports: The IE-5000 series supports high-performance uplink options, which might include fiber-optic ports (SFP slots), depending on the configuration and model. These provide flexibility for connecting the switch to distant locations over fiber optics.

3. Performance:

• Layer 2 and Layer 3 Switching:

  • Layer 2: Basic switching functionality such as VLANs, Spanning Tree Protocol (STP), and Link Aggregation (LACP), useful for segmenting the network and improving performance and reliability.

  • Layer 3: Advanced routing capabilities such as static routing, RIP (Routing Information Protocol), and OSPF (Open Shortest Path First), which are helpful in more complex network configurations where multiple networks need to be interconnected.

• Switching Capacity: With high-port density and high-performance hardware, the IE-5000-16S12P is designed to handle a large volume of network traffic, making it suitable for industrial applications that require real-time communication between devices.

• Forwarding Rate: Optimized to support high-throughput and low-latency communication, making it ideal for mission-critical applications where delays can lead to disruptions or failures in operations.

4. Redundancy and Reliability:

• Industrial-Grade Durability: The IE-5000 series is designed to operate in extreme conditions, including wide temperature ranges, vibration, and electromagnetic interference (EMI) commonly found in industrial environments.

• Redundancy Features:

  • Ethernet Ring Protection (ERP): Provides automatic recovery from network failures by reconfiguring the network path when a link or device goes down, ensuring high network availability.

  • Rapid Spanning Tree Protocol (RSTP): Helps the network converge quickly after changes in topology, reducing the recovery time in case of network failures.

  • Virtual Router Redundancy Protocol (VRRP): Ensures high availability by allowing multiple routers to work together to provide automatic failover in case of router failure.

5. Security:

• Advanced Security Features:

  • 802.1X Authentication: Ensures that only authorized devices can access the network by requiring devices to authenticate before gaining access.

  • Port Security: Restricts the number of MAC addresses allowed on each port, protecting the network from unauthorized access or malicious activity.

  • Access Control Lists (ACLs): Allows network administrators to filter traffic based on IP addresses and other criteria, improving the overall security of the network.

  • DHCP Snooping: Prevents rogue DHCP servers from assigning incorrect IP addresses to devices on the network.

  • IPsec: Ensures secure communication between remote locations or devices by encrypting network traffic.

  • Secure Boot: Prevents the switch from booting up with unauthorized software, helping to protect the network from malware or attacks on the firmware.

6. Management and Monitoring:

• CLI (Command-Line Interface): Provides comprehensive control and configuration options for advanced users, including detailed diagnostics, network settings, and troubleshooting.

• Web-Based GUI: For users who prefer graphical interfaces, the Cisco Web GUI offers an intuitive and easy-to-use way to manage, configure, and monitor the switch.

• SNMP (Simple Network Management Protocol): Provides remote monitoring and integration with network management systems (NMS) for real-time performance metrics, alerts, and troubleshooting.

• Cisco DNA Integration: The IE-5000 series integrates with Cisco’s Digital Network Architecture (DNA) for advanced automation, network analytics, and intelligent management.

7. Power over Ethernet (PoE):

• PoE+ Support: The 12 PoE+ ports provide power for devices that require higher power, such as IP cameras, Wi-Fi access points, digital signage, and industrial IoT sensors. By supporting up to 25.5W per port, it enables the connection of PoE-enabled devices in locations without easy access to power outlets.

• Simplified Cabling: Using PoE to deliver both power and data over a single Ethernet cable simplifies installation and reduces the amount of cabling required in the network.

8. Safety and Compliance:

• Certifications: The IE-5000-16S12P complies with various safety and regulatory certifications, including:

  • UL certification for safety.

  • CE and FCC compliance for electromagnetic compatibility.

  • RoHS (Restriction of Hazardous Substances) compliance for environmentally friendly design.

• Industry Standards: Supports IEEE Ethernet standards, as well as industry-specific protocols, ensuring interoperability with a wide range of devices and network infrastructures.

9. Use Cases:

• Industrial Automation: The 16 Ethernet ports and 12 PoE+ ports make this switch ideal for connecting PLCs, SCADA systems, HMI devices, and other industrial automation components.

• Smart Manufacturing: In a smart factory, the PoE+ ports can power devices like robotic arms, IoT sensors, and cameras, while the switch ensures seamless communication across devices and systems.

• Energy and Utilities: Can be deployed in smart grids, substations, and remote monitoring locations for real-time control and communication between energy management devices.

• Transportation and Smart Cities: Ideal for applications in intelligent transportation systems (ITS), such as traffic management, smart street lighting, public transport tracking, and surveillance cameras.

• Security: The switch can be used in security camera networks and building automation systems, with the PoE+ ports providing power to devices like security cameras and access control systems.

10. Power Supply:

• Redundant Power Supply: Ensures continuous operation in mission-critical environments by providing an automatic failover in the event of power supply failure.

11. Form Factor:

• Rack-Mountable: The IE-5000-16S12P is designed for 19-inch rack mounting, making it suitable for deployment in industrial control rooms, data centers, or network operations centers (NOCs).
