Description

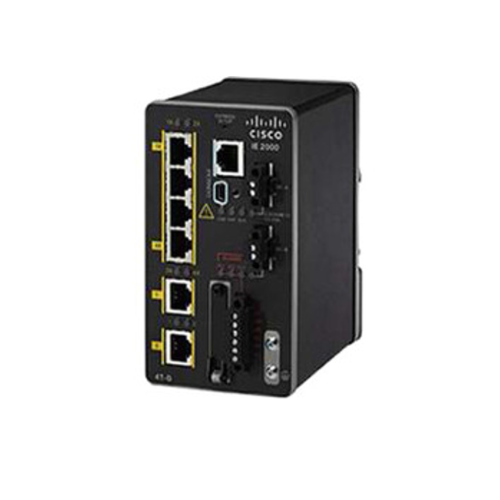

The IE-2000-4TS-L is a Layer 2 Ethernet switch with 4 ports, making it ideal for edge networking in industrial automation, smart grid systems, transportation networks, and video surveillance. The “L” in the model number typically indicates that it is part of the “Lite” configuration, which offers essential features while keeping the cost lower and focusing on simpler deployments where high-end features may not be necessary.

Key Features:

• 4 Ports with 10/100/1000 Mbps: The IE-2000-4TS-L comes with 4 Gigabit Ethernet ports (10/100/1000 Mbps), providing flexible connectivity options for smaller industrial networks or edge devices. These ports can handle a range of devices such as controllers, sensors, or edge devices.

• Compact and Rugged Design: This model is designed with a compact form factor, which is ideal for installations where space is limited. It is rugged enough to operate in harsh conditions, including temperature extremes, vibration, and exposure to dust, moisture, or chemicals.

• Industrial-Grade Durability: The IE-2000-4TS-L is built to operate in demanding industrial environments. It supports an operating temperature range typically from -40°C to 75°C (-40°F to 167°F), which is critical for remote or outdoor applications in harsh climates.

• Fanless Operation: Like many models in the IE-2000 series, the IE-2000-4TS-L is fanless, which not only reduces maintenance needs but also improves reliability in dusty and vibration-prone environments. This is essential in industrial settings where fan failure can be a major concern.

• Redundant Power Inputs: The IE-2000-4TS-L supports dual power inputs, providing redundancy to ensure continuous operation. If one power supply fails, the switch will continue to operate using the secondary power input, which is critical in environments that require high availability.

• Conformal Coating (Optional): The switch can come with an optional conformal coating to protect against environmental contaminants like dust, chemicals, or moisture, ensuring that the internal components remain protected in harsh environments.

• Low Power Consumption: This model is optimized for low power usage, making it ideal for edge deployments where power efficiency is important.

Layer 2 Switching Features:

• VLAN Support: The IE-2000-4TS-L supports VLANs (Virtual Local Area Networks), which allows you to segment traffic to improve network security, optimize bandwidth usage, and enhance overall performance by isolating different types of traffic.

• Spanning Tree Protocol (STP): STP is supported to prevent network loops and provide fault tolerance. This is useful in industrial environments where network redundancy and high uptime are essential.

• IGMP Snooping: The switch supports IGMP Snooping, allowing efficient handling of multicast traffic. This feature is beneficial for applications like video surveillance, real-time monitoring, and other multicast-based services.

• Link Aggregation (LACP): Link Aggregation allows you to combine multiple physical links into a single logical link to increase bandwidth and provide network redundancy.

Security Features:

• Access Control Lists (ACLs): The switch allows you to configure ACLs to filter traffic and restrict access to sensitive parts of the network. This helps in managing traffic flow and securing network resources.

• 802.1X Authentication: 802.1X provides network access control, ensuring that only authorized devices are allowed to connect to the network, which adds an additional layer of security.

• SNMPv3: The switch supports SNMPv3 for secure monitoring and management, allowing administrators to securely manage the switch and integrate it into larger network management systems.

Applications:

• Industrial Automation: The IE-2000-4TS-L is perfect for industrial automation environments, where it connects various industrial devices, such as PLCs, sensors, and actuators, in a factory or plant setting. It is a cost-effective and reliable option for managing communications in small networks or at the network edge.

• Smart Grid and Utilities: This model is ideal for smart grid infrastructure, connecting devices like smart meters, substation automation systems, and energy management devices. The ruggedness and low power consumption are essential for these outdoor or remote installations.

• Transportation Networks: The IE-2000-4TS-L can be deployed in railways, highways, or airport terminals, where it can help provide connectivity for traffic management systems, video surveillance, or real-time monitoring in demanding conditions.

• Video Surveillance: In video surveillance systems, the switch can be used to connect and manage devices like IP cameras, recorders, and monitors. Its PoE (if available in a specific variant) capability makes it suitable for powering IP cameras without the need for separate power lines.

Management and Configuration:

• Web-based GUI: The IE-2000-4TS-L includes a simple, web-based management interface, which makes it easy to configure, monitor, and troubleshoot without requiring specialized training.

• Command-Line Interface (CLI): For advanced configuration and deeper control, the CLI is available to network administrators, providing full control over the switch settings and enabling sophisticated customizations.

• SNMP Support: The device supports SNMPv3 for secure monitoring and integration with third-party network management systems, allowing for remote management and alerts.
