Description

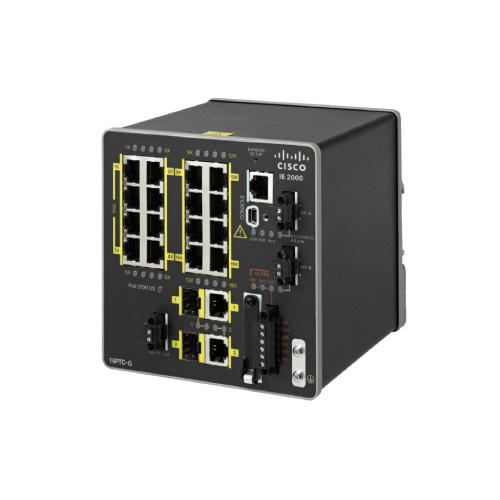

The IE-2000-16PTC-G-L is a 16-port industrial-grade Ethernet switch, with specific features and capabilities optimized for rugged environments. The “L” in the model name signifies that this variant does not come with the NX-OS software (which is found in the NX-based variants like NX and NXOS) and is more tailored to Layer 2 (L2) switching functions.

Key Features:

• 16 Fast Ethernet Ports: This model provides 16 Ethernet ports that support 10/100 Mbps speeds, which are suitable for industrial environments where the devices typically don’t need Gigabit speeds, but where reliability and low-latency communication are essential.

• Power over Ethernet (PoE): Supports PoE on some of the ports, which means the device can deliver both data and power to connected devices like IP cameras, access points, and VoIP phones. This eliminates the need for separate power cables and can reduce installation costs and complexity.

• Industrial-Grade Design: Built to handle extreme conditions, the IE-2000 series supports a wide temperature range from -40°C to 75°C (-40°F to 167°F), making it suitable for deployment in outdoor environments or harsh industrial conditions where temperature extremes are common.

• Redundant Power Inputs: The switch is designed for high availability, featuring dual redundant power inputs, which ensures that if one power supply fails, the other can take over seamlessly.

• Conformal Coating: The IE-2000 series comes with a conformal coating option, providing additional protection against dust, moisture, and corrosive elements often found in industrial environments.

• Layer 2 Switching: This switch primarily operates at Layer 2, providing essential functions such as VLAN support, Spanning Tree Protocol (STP), Link Aggregation, and MAC address table management for efficient data forwarding within the network.

Performance & Scalability:

• High Reliability: Designed to minimize downtime and ensure continuous operation, the IE-2000-16PTC-G-L is suitable for systems where 24/7 operation is required.

• Fanless Design: The device often comes with a fanless design which reduces maintenance and increases the longevity of the device in harsh environments. The absence of moving parts also makes it quieter and less prone to failure.

Security Features:

• Access Control Lists (ACLs): You can define and apply ACLs to restrict traffic flow and ensure that only authorized devices can communicate on the network.

• 802.1X Authentication: This enables the network security feature, ensuring that only authorized devices are granted access to the network, and unauthorized devices are prevented from connecting.

Applications:

• Industrial Automation: The IE-2000-16PTC-G-L is ideal for connecting operational technology (OT) devices like sensors, actuators, and controllers in a smart factory or automated manufacturing environment.

• Transportation: Used in transportation systems such as railways and roadway infrastructure, the IE-2000 series can support communications for critical systems and video surveillance.

• Energy: This model is deployed in smart grids, oil & gas, and power substations, where rugged, secure, and reliable networking is crucial.

• Remote and Outdoor Applications: With its extended temperature tolerance and ability to support PoE, this device is also used in remote or outdoor applications where power outlets may not be readily available.

Management and Configuration:

• Web-based GUI: The device features a user-friendly web interface for easy configuration, management, and troubleshooting.

• CLI Support: If a more advanced configuration is needed, the command-line interface (CLI) can be used for in-depth control and configuration.

• Managed Network: The IE-2000-16PTC-G-L allows network administrators to monitor and troubleshoot network performance using various network management tools.
