Description

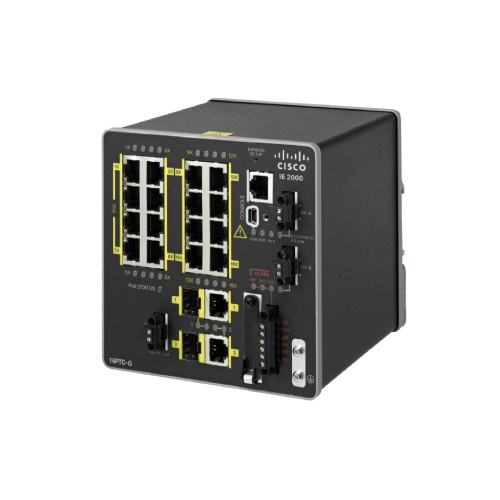

The IE-2000-16PTC-G-E is a 16-port Ethernet switch offering Power over Ethernet (PoE) capabilities, ideal for environments where both data and power need to be delivered over the same Ethernet cable. It is designed for reliability in harsh industrial conditions and supports both Layer 2 switching and advanced features like VLANs, Spanning Tree Protocol (STP), and Link Aggregation.

The “E” in the model name refers to this model being equipped with Cisco’s Enterprise-class features designed for deeper networking needs and may also include enhanced management features, security, and protocol support compared to standard models.

Key Features:

• 16 Ports with PoE: The IE-2000-16PTC-G-E offers 16 10/100 Mbps Ethernet ports with PoE support, allowing for the delivery of both data and power to powered devices (e.g., IP cameras, wireless access points, and VoIP phones). This eliminates the need for additional power cables and simplifies deployment.

• Gigabit Ethernet (Optional): While the base configuration offers 10/100 Ethernet ports, the device supports Gigabit Ethernet connectivity in some configurations, enabling higher-speed connections for more demanding applications.

• Wide Temperature Range: As part of the IE-2000 series, the switch can handle a wide operating temperature range, typically -40°C to 75°C (-40°F to 167°F), which is crucial for outdoor deployments or environments subject to temperature extremes.

• Industrial-Grade Durability: The switch is engineered to withstand harsh conditions commonly found in industrial environments, including exposure to dust, humidity, moisture, and vibration. The fanless design also makes it more resilient by eliminating moving parts that could fail over time.

• Redundant Power Inputs: It features dual power input options to ensure continuous operation if one power source fails, which is vital for industrial applications that require high uptime.

• Conformal Coating Option: Some models of the IE-2000-16PTC-G-E may come with an optional conformal coating for enhanced protection against environmental contaminants like dirt, moisture, and chemicals that could degrade the switch’s performance.

• Advanced Security Features:

  • 802.1X Authentication: Ensures that only authorized devices can access the network.

  • Access Control Lists (ACLs): Allows for filtering traffic based on specific rules, enhancing network security and traffic management.

  • TrustSec Support: For secure, role-based access to network resources.

Layer 2 Switching and Networking Features:

• VLAN Support: Create and manage Virtual Local Area Networks (VLANs) to segment traffic and optimize network performance.

• Spanning Tree Protocol (STP): Used to avoid network loops and provide fault tolerance by creating backup paths in case the primary network path fails.

• Link Aggregation (LACP): Combine multiple physical links into a single logical link to increase bandwidth and provide redundancy.

• IGMP Snooping: Helps manage multicast traffic, which is essential for video surveillance or other high-bandwidth applications.

Applications:

The IE-2000-16PTC-G-E is ideal for various mission-critical industrial applications where resilience, scalability, and security are paramount.

• Industrial Automation: The switch is commonly used in manufacturing environments to connect devices such as PLC controllers, sensors, and actuators that need continuous, reliable data transfer.

• Energy and Utilities: The switch is used in smart grid networks, substations, and other utility applications, where the network infrastructure needs to handle harsh environmental conditions while maintaining operational continuity.

• Transportation and Railways: Ideal for use in transportation systems, such as railways, highways, and smart city infrastructure, where it can support communications for real-time monitoring, signaling, and surveillance systems.

• Video Surveillance: With PoE support, the switch is often deployed in video surveillance systems where cameras are connected and powered over the Ethernet cable.

Management and Configuration:

• Web-based Management Interface: The IE-2000-16PTC-G-E includes a user-friendly web interface for simplified management and monitoring, allowing users to easily configure the device, check network status, and troubleshoot issues remotely.

• Command-Line Interface (CLI): For more advanced configurations, the device can be managed using the CLI, which allows network administrators to customize settings and implement policies at a granular level.

• SNMP: Supports Simple Network Management Protocol (SNMP) for network monitoring and management via third-party tools, facilitating real-time monitoring and proactive management of the network.
