Description

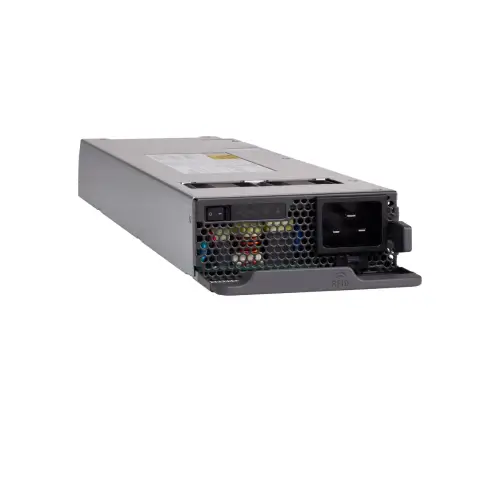

The Cisco Catalyst C9400-PWR-2100AC is a 2100W AC power supply module designed for the Cisco Catalyst 9400 Series switches. It’s engineered to provide efficient and reliable power, supporting both Power over Ethernet (PoE) and non-PoE configurations.

🔧 Key Specifications

• Output Power: 2100W

• AC Input Voltage:

  • Low-line (115 VAC nominal): 85–132 VAC

  • High-line (230 VAC nominal): 180–264 VAC

• AC Input Current:

  • 100 VAC: 11.44 A (providing 950W output)

  • 200 VAC: 11.44 A (providing 2112W output)

• AC Input Frequency: 50/60Hz nominal (47 to 63Hz full range)

• Output Voltage:

  • 55V DC: Up to 38.21A at 230 VAC input

  • 3.3V DC Standby: 3.0A

• Heat Dissipation:

  • 460 BTU/hr at 2112W output

  • 244 BTU/hr at 950W output

• Weight: Approximately 2.3 kg (5.0 lbs)

• Form Factor: Plug-in module

• Hot Swappable: Yes

• MTBF (Mean Time Between Failures): 300,000 hours

• Minimum Software Requirement: Cisco IOS XE Software Release 16.6.1

⚙️ Features

• Integrated PoE: Supports Power over Ethernet, delivering up to 2100W of power to connected devices.

• Redundant Configuration Support: Allows for N+N and N+1 redundancy modes to ensure continuous operation.

• Front-Facing Design: Facilitates easy installation and maintenance.

• Built-in RFID Tag: Equipped with a passive RFID tag for asset management and tracking.

• Cooling Mechanism: Includes a self-cooling mechanism with a minimum airflow of 7 cubic feet per minute (CFM) at 100% load.

• Release Latch and Cord-Retention Mechanism: Prevents accidental removal of the module or the attached power cord.

🔌 Compatibility

The C9400-PWR-2100AC is compatible with various Cisco Catalyst 9400 Series chassis, including:

• C9404R

• C9407R

• C9410R

Each chassis supports multiple power supply bays, and the C9400-PWR-2100AC can be configured in redundant or combined modes to meet specific power requirements.

📦 Included Components

• C9400-PWR-2100AC Power Supply Module

• Power Cord (specific to region)
