Description

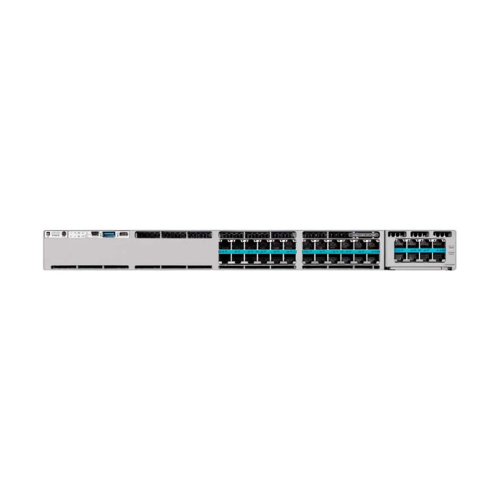

The Cisco Catalyst C9300X-24HX-E is a high-performance, stackable Layer 3 managed switch designed for enterprise access layers, offering advanced features and scalability.

🔧 Key Specifications

• Ports:

  • 24 x 10/100/1000/2.5G/5G/10GBase-T (UPOE+)

  • 1 x USB 2.0 port

  • Modular uplink slots (supports C9300X-NM-xx modules)

• Power over Ethernet (PoE):

  • UPOE+ with a total power budget of 735W

• Performance:

  • Switching capacity: 880 Gbps

  • Stacking bandwidth: 1.88 Tbps

  • Forwarding rate: 327.38 Mpps

• Routing and Protocols:

  • Supports IPv4 and IPv6 routing

  • Protocols: RIP, VRRP, PIM-SM, GRE, MSTP, STP, LISP, and more

• Management and Security:

  • Cisco DNA Essentials license

  • StackWise-1T technology for high-density stacking

  • Advanced security features including 802.1x, CoPP, and more

• Hardware:

  • 16 GB DRAM

  • 16 GB Flash memory

  • Rack-mountable chassis with dimensions: 4.4 x 44.5 x 44.6 cm

  • Weight: 6.25 kg

✅ Ideal Use Cases

• High-Density Environments: Ideal for campuses, data centers, and enterprise networks requiring high-density 10G connectivity.

• Advanced Security Needs: Suitable for deployments requiring advanced security features and segmentation.

• Scalability: Supports stacking up to 8 units, providing scalability for growing networks.
