Description

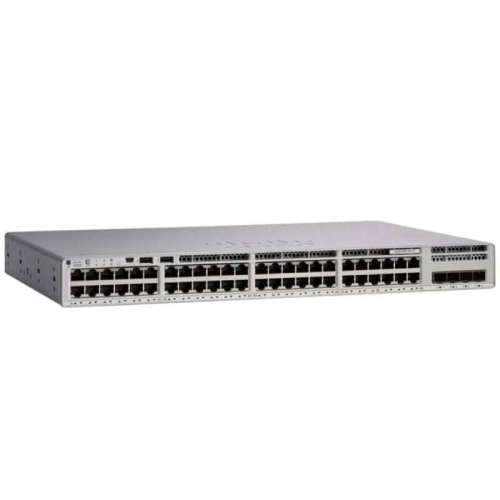

The Cisco Catalyst C9300L-48T-4X-E is a high-performance, stackable enterprise switch designed for modern network infrastructures. Part of the Catalyst 9300L series, it offers enhanced scalability, security, and automation capabilities.

🔧 Key Specifications

• Ports: 48 x 10/100/1000 Ethernet ports

• Uplink Ports: 4 x 10G SFP+

• Switching Capacity: 176 Gbps

• Stacking Bandwidth: 320 Gbps (StackWise-320)

• Forwarding Rate: 130.95 million packets per second (Mpps)

• Power Supply: 350W AC (default)

• Form Factor: 1RU rack-mountable chassis

• Dimensions: 44.5 x 4.4 x 40.9 cm

• Weight: Approximately 7 kg

• Software License: Network Essentials

• Jumbo Frame Support: Up to 9198 bytes

• MAC Address Table Size: 32,000 entries

• IPv4 Routes: 32,000

• IPv6 Routes: 16,000

• VLANs Supported: Up to 4094

• Switched Virtual Interfaces (SVIs): Up to 1000

• Routing Protocols Supported: OSPF, RIP, EIGRP, VRRP, PIM-SM, PIM-SSM, RIPng, MSTP

• Management Protocols: SNMP, RMON, CLI, NETCONF, RESTCONF

• Security Features: 802.1X authentication, MACsec-128, CoPP, SPAN, RSPAN, PVLAN

• Quality of Service (QoS): 5120 entries

• Access Control Lists (ACLs): 5120 entries

• Automation and Programmability: NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)

• Telemetry and Visibility: Model-driven telemetry, sampled NetFlow, SPAN, RSPAN

🚀 Advanced Features

• High-Density Ports: 48 x 1G Ethernet ports and 4 x 10G SFP+ uplinks

• Stacking Flexibility: Supports StackWise-320 technology with up to 8 members

• Enhanced Security: MACsec-128 encryption for secure data transmission

• Comprehensive Routing Support: Supports various routing protocols including OSPF, EIGRP, and RIP

• Robust Management: Offers multiple management protocols for flexibility

• Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining high performance

📦 Accessories and Compatibility

• Stacking Kit: C9300L-STACK-KIT

• SFP+ Modules:

  • SFP-10G-SR=

  • SFP-10G-LR=

• Power Supplies:

  • PWR-C1-350WAC
