Description

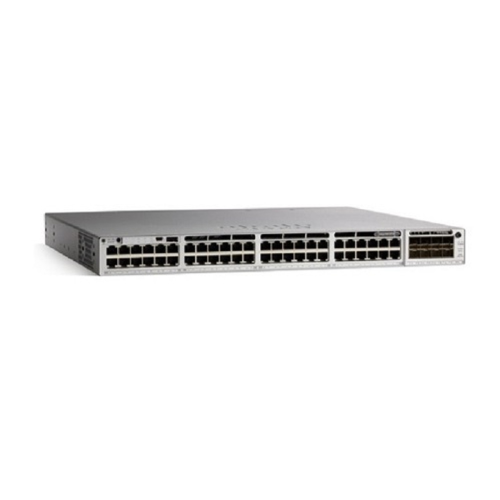

The Cisco Catalyst C9300L-48T-4G-A is a fixed-configuration, stackable enterprise switch designed for modern network infrastructures. Part of the Catalyst 9300L series, it offers enhanced scalability, security, and automation capabilities.

🔧 Key Specifications

• Ports:

  • 48 x 10/100/1000 Ethernet ports

  • 4 x 1G SFP fixed uplinks

• Switching Capacity: 104 Gbps

• Stacking Bandwidth: 320 Gbps

• Forwarding Rate: 77.38 million packets per second (Mpps)

• Stacking Technology: StackWise-320, supporting up to 8 members

• Software License: Network Advantage

• Power Supply: 350W AC (default)

• Form Factor: 1RU rack-mountable chassis

• Dimensions: 4.4 x 44.5 x 40.9 cm

• Weight: Approximately 7 kg

• Memory:

  • DRAM: 8 GB

  • Flash: 16 GB

• MAC Address Table Size: 32,000 entries

• IPv4 Routes: 32,000 entries

• IPv6 Routes: 16,000 entries

• VLANs Supported: Up to 4094

• Jumbo Frame Support: Up to 9198 bytes

• Total Routed Ports per Stack: 416

• Security Features: MACsec-256 encryption

• Automation and Programmability: NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)

• Telemetry and Visibility: Model-driven telemetry, sampled NetFlow, SPAN, RSPAN

• High Availability and Resiliency: Nonstop Forwarding (NSF), Graceful Insertion and Removal (GIR), Fast Software Upgrade (FSU)

• IoT Integration: AVB, PTP, CoAP

🚀 Advanced Features

• High-Density Ports: 48 x 1G Ethernet ports and 4 x 1G SFP uplinks

• Stacking Flexibility: Supports StackWise-320 technology with up to 8 members

• Enhanced Security: MACsec-256 encryption for secure data transmission

• Comprehensive Routing Support: Supports various routing protocols including OSPF, EIGRP, and RIP

• Robust Management: Offers multiple management protocols for flexibility

• Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining high performance

📦 Accessories and Compatibility

• Stacking Kit: C9300L-STACK-KIT

• SFP Modules:

  • GLC-LH-SMD=

  • GLC-SX-MMD=

• Power Supplies:

  • PWR-C1-350WAC
