Description

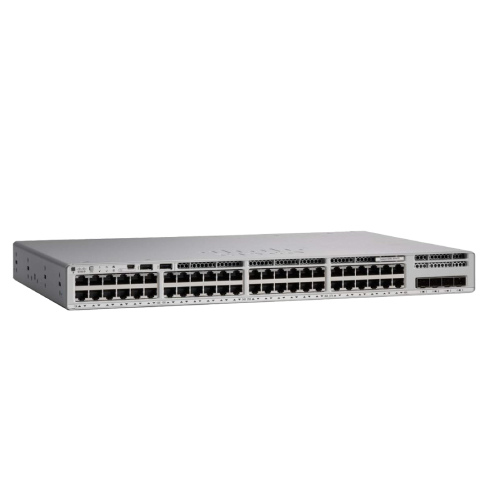

The Cisco Catalyst C9300L-48PF-4X-E is a high-performance, stackable enterprise switch designed for modern network infrastructures. Part of the Catalyst 9300L series, it offers enhanced scalability, security, and automation capabilities.

🔧 Key Specifications

• Ports:

  • 48 x 10/100/1000 Mbps PoE+ Ethernet ports (up to 30W per port)

  • 4 x 10G SFP+ fixed uplink ports

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 million packets per second (Mpps)

• Stacking Bandwidth: 320 Gbps (StackWise-320)

• Stacking Members: Supports up to 8 members

• DRAM: 8 GB

• Flash Memory: 16 GB

• Power Supply: 1100W AC

• PoE Budget: Up to 890W

• Dimensions: 4.4 x 44.5 x 40.9 cm

• Weight: Approximately 7.03 kg

• Operating Temperature: 0°C to 45°C

• Licensing: Network Essentials

• Security: MACsec-256 encryption

• Automation and Programmability: NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)

• Telemetry and Visibility: Model-driven telemetry, sampled NetFlow, SPAN, RSPAN

• High Availability and Resiliency: Nonstop Forwarding (NSF), Graceful Insertion and Removal (GIR), Fast Software Upgrade (FSU)

• IoT Integration: AVB, PTP, CoAP

🚀 Advanced Features

• High-Density Ports: 48 x 1G Ethernet ports and 4 x 10G SFP+ uplinks

• Stacking Flexibility: Supports StackWise-320 technology with up to 8 members

• Enhanced Security: MACsec-256 encryption for secure data transmission

• Comprehensive Routing Support: Supports various routing protocols including OSPF, EIGRP, and RIP

• Robust Management: Offers multiple management protocols for flexibility

• Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining high performance

📦 Accessories and Compatibility

• Stacking Kit: C9300L-STACK-KIT

• SFP+ Modules:

  • GLC-LH-SMD=

  • GLC-SX-MMD=

• Power Supplies:

  • PWR-C1-1100WAC
