Description

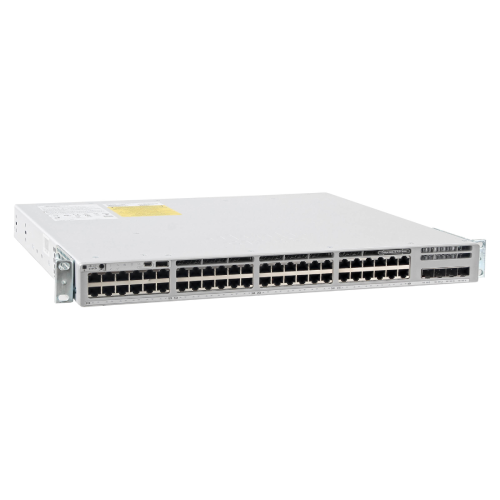

The Cisco Catalyst C9300L-48P-4X-A is a high-performance Layer 3 stackable switch designed for enterprise access networks. It offers a robust set of features suitable for modern network infrastructures.

🔧 Key Specifications

• Ports: 48 x 10/100/1000 RJ45 PoE+ ports (505W total PoE budget)

• Uplink Ports: 4 x 10G SFP+

• Switching Capacity: 176 Gbps

• Stacking Bandwidth: 320 Gbps

• Forwarding Rate: 130.95 Mpps (million packets per second)

• Forwarding Rate with Stacking: 369.05 Mpps

• MAC Address Table Size: 32,000 entries

• IPv4 Routing Entries: 32,000

• IPv6 Routing Entries: 16,000

• Jumbo Frame Support: Up to 9198 bytes

• DRAM: 8 GB

• Flash Memory: 16 GB

• Power Supply: 715W AC

• Dimensions (H x W x D): 4.4 x 44.5 x 40.9 cm

• Weight: 7.03 kg

• Mean Time Between Failures (MTBF): 309,020 hours

🛡️ Features & Capabilities

• Layer 3 Routing: Supports OSPF, EIGRP, RIP, VRRP, IS-IS, and PIM for multicast routing.

• High Availability: Features like Nonstop Forwarding (NSF), Stateful Switchover (SSO), and Fast Software Upgrade (FSU) ensure minimal downtime.

• Security: MACsec-256 encryption, 802.1X authentication, and CoPP (Control Plane Policing) enhance network security.

• Automation & Management: Supports NETCONF, RESTCONF, gRPC, YANG, and Zero Touch Provisioning (ZTP) for streamlined deployment and management.

• Quality of Service (QoS): Offers 5120 QoS scale entries and advanced traffic management features.

• Network Segmentation: Supports VRF, VXLAN, LISP, and MPLS for flexible network segmentation.

• Telemetry: Provides model-driven telemetry and sampled NetFlow for enhanced network visibility.

📦 Included in the Box

• Cisco Catalyst C9300L-48P-4X-A Switch

• Power Cord

• Rack Mount Kit

• Quick Start Guide
