Description

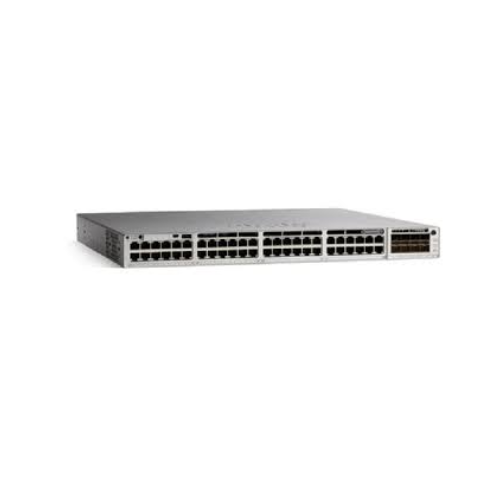

The Cisco Catalyst C9300-48UXM-E is a high-performance, stackable Layer 3 managed switch designed for enterprise networks requiring advanced features, scalability, and high-speed connectivity. Part of the Catalyst 9300 Series, it offers robust security, automation, and operational efficiency.

🔧 Key Specifications

• Ports:

  • 36 x 2.5GBase-T (UPOE)

  • 12 x 100/1000/2.5G/5G/10GBase-T (UPOE)

• Power over Ethernet (PoE): UPOE

• PoE Budget: 490W

• Switching Capacity: 580 Gbps

• Forwarding Rate: 431.54 Mpps

• Stacking Bandwidth: 480 Gbps

• Stacking Support: Up to 8 members with StackWise-480 technology

• Memory:

  • RAM: 8 GB

  • Flash: 16 GB

• Routing Protocols Supported: OSPF, IS-IS, RIP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, RIPng

• Management Protocols: SNMP v1/v2c/v3, RMON, CLI, NETCONF, RESTCONF

• Environmental:

  • Operating Temperature: -5°C to +45°C (up to 5,000 ft), -5°C to +40°C (up to 10,000 ft)

  • Humidity: 5% to 90% (non-condensing)

• Certifications: UL 60950-1, IEC 60950-1, EN 60950-1, IEEE 802.

🛠️ Features & Capabilities

• Stacking: Supports Cisco StackWise-480 technology for high-bandwidth, resilient stacking.

• Power Redundancy: Optional dual hot-pluggable power supplies for enhanced reliability.

• Security: Features like 802.1x authentication, Control Plane Policing (CoPP), and Private VLANs.

• Quality of Service (QoS): Advanced QoS features to prioritize critical traffic.

• Automation: Supports Cisco DNA Center for network automation and assurance.

• Management: Integrated Wireshark for packet analysis and troubleshooting.

📦 Form Factor & Dimensions

• Enclosure: Rack-mountable 1U

• Dimensions: 17.5″ x 18.5″ x 1.7″ (44.5 cm x 47 cm x 4.3 cm)

• Weight: Approximately 20.59 lbs (9.35 kg)

🔄 Compatibility & Use Cases

The C9300-48UXM-E is ideal for high-density environments requiring 2.5G and 10G uplink capabilities. It’s suitable for modern enterprise networks, supporting applications like high-definition video conferencing, large-scale wireless deployments, and data center connectivity. Its modular uplink options provide flexibility for future network expansions.
