Description

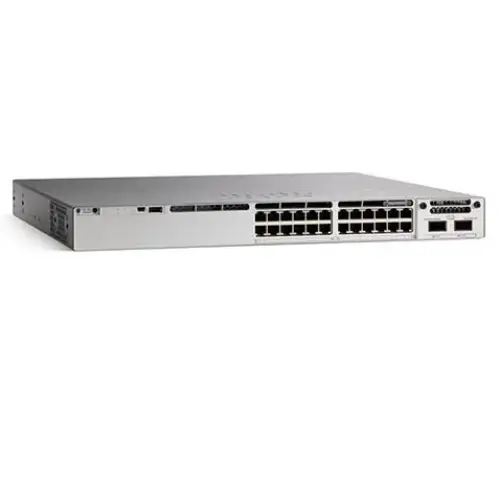

The C9300-24P-E is part of the Catalyst 9300 Series—a highly scalable, secure, and high-performance family of switches designed for enterprise network access. With 24 Gigabit Ethernet (1G) ports that support PoE+ (Power over Ethernet Plus), this model is ideal for powering devices like IP phones, wireless access points, and cameras, while providing reliable network connectivity. It’s built to support evolving network demands, making it an ideal choice for businesses looking for a future-proof, robust networking solution.

Key Features:

• 24 Gigabit Ethernet Ports (1G): This model is equipped with 24 x 10/100/1000 Ethernet ports to provide high-speed network connectivity for end devices such as computers, printers, and networked devices.

• PoE+ Support (IEEE 802.3at): The C9300-24P-E provides 24 PoE+ ports, allowing it to supply both data and power to connected devices over a single Ethernet cable. This feature eliminates the need for separate power sources for devices such as IP phones, wireless access points, security cameras, and networked sensors.

• Power Budget: With PoE+ support, the C9300-24P-E has a maximum PoE power budget of 435W, making it suitable for high-demand devices that require a substantial amount of power.

• Stackable Design: The C9300 Series supports stacking of up to 8 switches in a single stack, providing up to 480 Gbps of stack bandwidth. This allows you to scale the network as needed while keeping it easy to manage as a single logical unit.

• Layer 3 Routing: The C9300-24P-E offers Layer 3 routing capabilities (including Static Routing, OSPF, EIGRP, and BGP), which allows it to handle more complex network traffic management and routing functions. This makes it ideal for enterprise environments that require not just switching but also advanced routing and traffic control.

• Security Features: The C9300-24P-E includes Cisco’s advanced security features, including:

  • 802.1X Authentication for secure access control.

  • Cisco MACsec encryption to secure data transmission across the network.

  • Cisco TrustSec for simplified policy-based access control.

  • Advanced Threat Detection through integrated security protocols.

• Energy Efficient: The C9300-24P-E supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption during periods of low traffic. Additionally, the Cisco EnergyWise feature helps organizations monitor and reduce energy use, contributing to sustainability efforts.
