Description

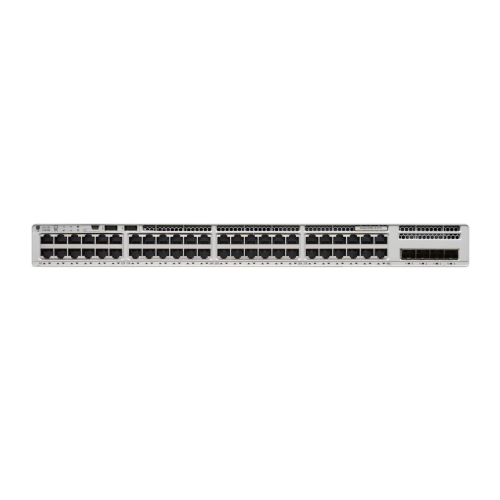

The Cisco Catalyst C9200L-48P-4G-E is a Layer 3 enterprise access switch designed for scalability, security, and high performance. It’s part of the Catalyst 9200L Series, offering advanced features suitable for modern network infrastructures.

🔧 Key Specifications

• Ports:

  • 48 x 10/100/1000 Mbps Ethernet ports (PoE+ supported)

  • 4 x 1G SFP uplink ports (fiber)

• Performance:

  • Switching Capacity: 104 Gbps

  • Forwarding Rate: 154.76 million packets per second (Mpps)

  • DRAM: 2 GB

  • Flash Memory: 4 GB

  • MAC Address Table: 16,000 entries

  • Stacking: Supports StackWise-80 technology with up to 8 members and 80 Gbps stacking bandwidth

• Power over Ethernet (PoE):

  • PoE+ Budget: Up to 1440W

  • Power Supply: Fixed internal power supply (720W)

• Software:

  • License Level: Network Essentials

  • Routing Protocols: Supports advanced Layer 3 features including OSPF, EIGRP, and BGP

  • Security Features: Includes features like 802.1X authentication, MACsec, and TrustSec

• Physical Dimensions:

  • Rack Units: 1 RU

  • Dimensions: 44.5 cm (W) x 28.8 cm (D) x 4.4 cm (H)

  • Weight: Approximately 4.35 kg

• Environmental:

  • Operating Temperature: -5°C to +45°C (up to 1,500 m altitude)

  • Compliance: Meets various safety and EMC standards including UL 60950-1, EN 60950-1, and FCC Part 15 Class A

🛠️ Installation & Accessories

• Mounting: Compatible with standard 19-inch racks

• Stacking Kit: Requires the C9200L-STACK-KIT for stacking configurations

• Power Supply: Fixed internal power supply (720W)

✅ Ideal Use Cases

The C9200L-48P-4G-E is suitable for:

• Enterprise Access Layer: Providing high-speed connectivity to end-user devices

• Campus Networks: Serving as a backbone switch with high uplink capacity

• Branch Offices: Offering secure and reliable network access
