Description

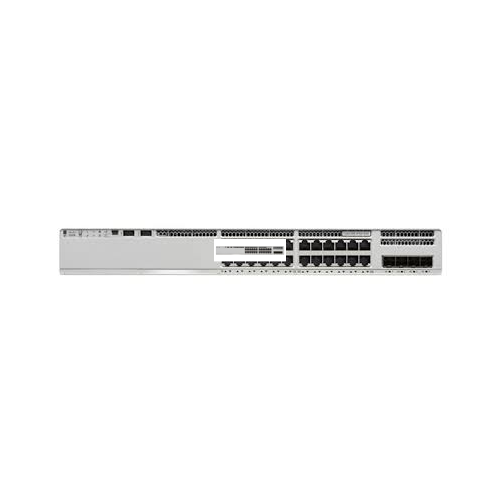

The Cisco Catalyst C9200L-24T-4X-A is a Layer 3 enterprise access switch designed for scalability, security, and high performance. It’s part of the Catalyst 9200L Series, offering advanced features suitable for modern network infrastructures.

🔧 Key Specifications

• Ports:

  • 24 x 10/100/1000 Mbps Ethernet ports (data-only)

  • 4 x 10G SFP+ uplink ports (fiber)

• Performance:

  • Switching Capacity: 128 Gbps

  • Forwarding Rate: 190.4 million packets per second (Mpps)

  • DRAM: 2 GB

  • Flash Memory: 4 GB

  • Stacking Bandwidth: 80 Gbps

  • MAC Address Table: 16,000 entries

  • IPv4 Routes: 11,000 (8,000 direct + 3,000 indirect)

  • IPv6 Routes: 1,500

  • Jumbo Frame Support: Up to 9,198 bytes

  • VLANs Supported: 1,024

  • SVIs (Switched Virtual Interfaces): 512

  • QoS Entries: 1,000

  • ACL Entries: 1,500

  • Flexible NetFlow Entries: 16,000

  • Packet Buffer: 6 MB

  • Mean Time Between Failures (MTBF): 525,990 hours

• Software:

  • License Level: Network Advantage

  • Routing Protocols: Supports advanced Layer 3 features including OSPF, EIGRP, and BGP

  • Security Features: Includes features like 802.1X authentication, MACsec, and TrustSec

• Physical Dimensions:

  • Rack Units: 1 RU

  • Dimensions: 44.5 cm (W) x 28.8 cm (D) x 4.4 cm (H)

  • Weight: Approximately 5 kg

• Power Supply:

  • Default: PWR-C5-125WAC (125W)

  • Redundancy: Optional

🛠️ Installation & Accessories

• Mounting: Compatible with standard 19-inch racks

• Stacking Kit: Requires the C9200L-STACK-KIT for stacking configurations

• Power Supply: Fixed internal power supply (125W)

✅ Ideal Use Cases

The C9200L-24T-4X-A is suitable for:

• Enterprise Access Layer: Providing high-speed connectivity to end-user devices

• Campus Networks: Serving as a backbone switch with high uplink capacity

• Branch Offices: Offering secure and reliable network access
