Description

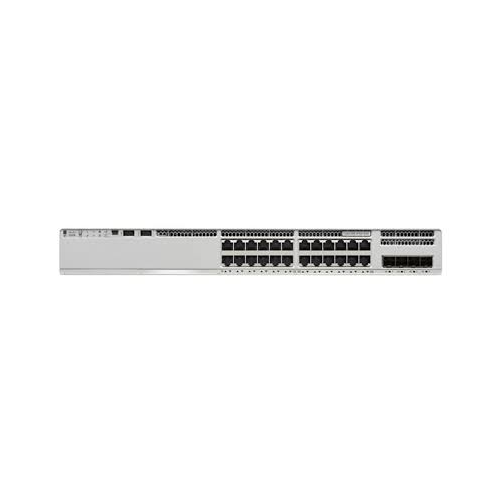

The Cisco Catalyst C9200L-24T-4G-E is a Layer 3 enterprise access switch designed for high performance, security, and scalability in modern network environments. It is part of the Cisco Catalyst 9200L Series, which provides robust features suitable for enterprise campus and branch networks.

Key Specifications:

• Ports:

  • 24 x 10/100/1000 Mbps Ethernet ports (data-only)

  • 4 x 1G SFP uplink ports (fiber)

• Performance:

  • Switching Capacity: 104 Gbps

  • Forwarding Rate: 77.38 million packets per second (Mpps)

  • DRAM: 2 GB

  • Flash Memory: 4 GB

  • MAC Address Table: 16,000 entries

  • IPv4 Routes: 8,000 direct + 3,000 indirect

  • IPv6 Routes: 1,500

  • Jumbo Frame Support: Up to 9,216 bytes

  • VLANs Supported: 1,024

  • Switched Virtual Interfaces (SVIs): 512

• Stacking:

  • Supports Cisco StackWise-80 technology

  • Up to 8 members in a stack with 80 Gbps stacking bandwidth

• Power Supply:

  • Fixed internal power supply (125W)

  • No PoE support on this model

• Software:

  • License Level: Network Essentials

  • Supports advanced Layer 3 routing protocols including OSPF, EIGRP, and BGP

  • Security features include 802.1X authentication and TrustSec

• Physical Characteristics:

  • Rack Units: 1 RU

  • Dimensions: 44.5 cm (W) x 28.8 cm (D) x 4.4 cm (H)

  • Weight: Approximately 4.35 kg

• Environmental:

  • Operating Temperature: -5°C to +45°C (up to 1,500 meters altitude)

  • Compliance: UL 60950-1, EN 60950-1, FCC Part 15 Class A

Ideal Use Cases:

• Enterprise access layer switch connecting end-user devices

• Campus and branch office network backbone with fiber uplinks

• Scalable, secure, and manageable switch for midsize networks
