Description

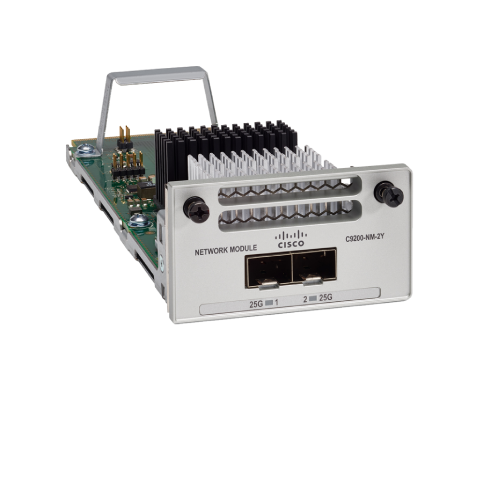

The Cisco C9200-NM-2Y is a 2-port 25 Gigabit Ethernet (25G) network module designed for the Cisco Catalyst 9200 Series switches. It provides high-speed uplink connectivity, supporting both 25G and 10G speeds for flexible deployment options.

🔹 Key Features

• Ports: 2 x 25G Ethernet SFP28 slots

• Throughput: Up to 50 Gbps

• Supported Optics: 25GBASE-SR, 10GBASE-SR

• Connector Type: SFP28

• Dimensions: 1.5 x 4.1 x 9.5 inches (3.81 x 10.41 x 24.13 cm)

• Weight: 1.0 lb (0.45 kg)

• Software Requirement: Cisco IOS XE Amsterdam 17.1.1 or later

• Warranty: 1-year limited hardware warranty

🔹 Compatibility

The C9200-NM-2Y module is only supported on the following Cisco Catalyst 9200 Series models:

• C9200-24PXG

• C9200-48PXG

These models are equipped with Multigigabit Ethernet ports, which are compatible with the 25G uplink speeds provided by the C9200-NM-2Y module.

🔹 Use Cases

Ideal for environments requiring high-speed uplink connectivity, such as:

• Data Centers: Connecting to high-speed aggregation or core networks.

• High-Performance Computing: Supporting bandwidth-intensive applications.

• Enterprise Networks: Facilitating fast data transfer between switches and servers.
