Description

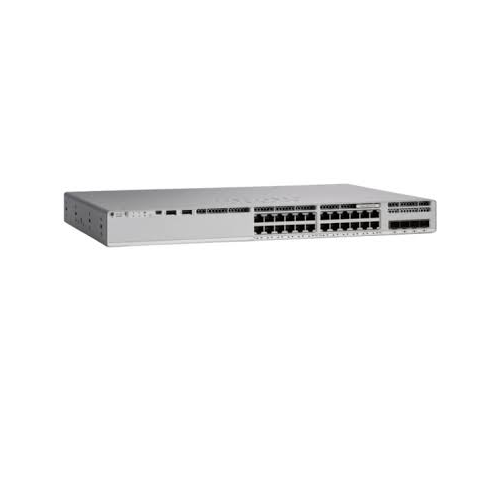

The Cisco Catalyst C9200-24T-E is a 24-port Layer 3 managed switch designed for enterprise access and aggregation layers. It offers robust performance, scalability, and security features, making it suitable for modern network infrastructures.

🔹 Key Specifications

• Ports: 24 x 10/100/1000 Mbps RJ45 Ethernet ports

• Uplink Options: Modular network modules (1G, 10G, 40G)

• Stacking: Supports Cisco StackWise-160 technology with up to 8 switches and 160 Gbps stacking bandwidth

• Switching Capacity: 128 Gbps

• Forwarding Rate: 190.4 million packets per second (Mpps)

• DRAM: 4 GB

• Flash Memory: 4 GB

• Software: Cisco IOS XE Network Essentials

• Power Supply: PWR-C6-125WAC

• Fans: Field-replaceable redundant fans

• Dimensions: 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)

• Weight: 5.0 kg

• Warranty: Cisco Enhanced Limited Lifetime Hardware Warranty

🔹 Layer 3 Routing Capabilities

• Routing Protocols: OSPF, EIGRP, IS-IS, RIP, BGP

• IPv4 Routing Entries: 4,000

• IPv6 Routing Entries: 2,000

• Switched Virtual Interfaces (SVIs): Up to 1,000

• Access Control Lists (ACLs): Up to 1,600 entries

• Quality of Service (QoS): Advanced QoS capabilities

• Flexible NetFlow (FNF): Support for up to 16,000 flows

🔹 Compatibility and Expansion

• Modular Uplinks: Supports various uplink modules for flexible connectivity options

• Stacking: Supports Cisco StackWise-160 technology with up to 8 switches and 160 Gbps stacking bandwidth

• Network Modules: Compatible with modules like C9200-NM-4G, C9200-NM-4X, and C9200-NM-2Y

• Power Redundancy: Optional secondary power supply for increased PoE budget

Ideal for enterprise environments requiring high-density, secure, and scalable network access:

• Campus Networks: Connecting end-user devices with high performance

• Branch Offices: Providing reliable connectivity with centralized management

• Data Centers: Serving as access or aggregation layer switches

• Educational Institutions: Supporting high-density classrooms and administrative networks
